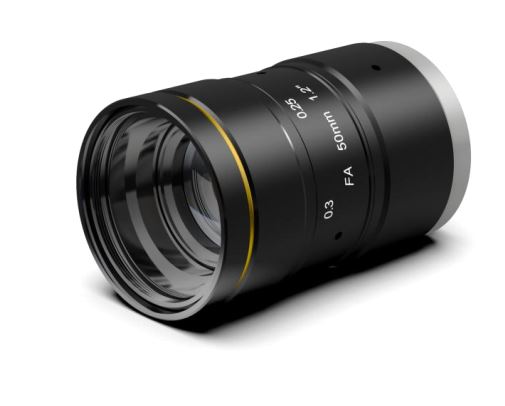

Thông số kỹ thuật :| Focal Length | 50mm | |||
| Image Format | 1.2” | |||
| Iris Range | F2.8～F16 | |||
| Focus Range | 0.25m～Inf. | Filter Size | M30.5 ,P=0.5mm | |
| TV Distortion | 0.02% @0.5m | Dimensions | Φ35×56.6mm | |
| Iris Type | Manual | Weight | 96.2± 2g | |
| Mount | C-Mount | Temperature Range | -20℃ ～70℃ |
| Working Distance |
Optical Magnification |
Extension Ring |
Ring Field of View(mm) | |||||
| (mm) | – | (mm) | H | V | ||||
| 1000 | -0.050X | – | 292.0 | 252.6 | ||||
| 900 | -0.056X | – | 262.8 | 227.3 | ||||
| 800 | -0.063X | – | 233.6 | 202.1 | ||||
| 700 | -0.071X | – | 204.4 | 176.8 | ||||
| 600 | -0.083X | – | 175.2 | 151.6 | ||||
| 500 | -0.100X | – | 146.0 | 126.3 | ||||
| 400 | -0.125X | – | 116.8 | 101.0 | ||||
| 300 | -0.167X | – | 87.6 | 75.8 | ||||
| 200 | -0.250X | 5 | 58.4 | 50.5 | ||||
| 100 | -0.500X | 25 | 29.2 | 25.3 |
