Controller Features
- Multi-channel constant voltage output controlled via serial communication or front
- 256-level digital modulation for precise software-based brightness
- Supports RS232 serial communication
- Built-in memory function to retain settings after power
- Automatic overload
- High-speed optocoupler isolation
- Numeric display for channels and brightness, with tactile switch adjustment for easy
Performance Parameters
| Model | TPW-4P75W-24V |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | 1-24V |
| Output Current | 3A |
| Channels | 4 |
| Max Power | 75W |
| Output Terminals | SMP-03V (1: Output +, 2: NC, 3: Output -) |
| Overcurrent Protection | Peak greater than 3A |
| Remote Control Method | Serial communication control |
| Brightness Levels | 0-255 |
| Operating Environment | Indoor only, Temperature: 0-40°C, Humidity: 20-85%RH |
| Trigger Delay | <40µs |
| Trigger Voltage | 5V-24V |

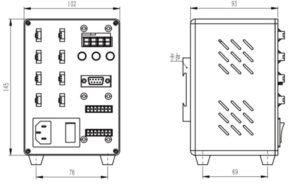

- Kích thước
