Đèn Ring Light TRI-7230
| MODEL | TRI-7230 |
| Type | Ring Light |
| Led Model | Surface-mounted |
| Color | White |
| Wave Length | – |
| Color Temperature |
6000k |
| Input Voltage |
DC24V |
| Wire Length | 0.5m |
| Connector Model |
SMR-03V-B |
| Connector Definition |
1.Positive(+) 2.Blank 3.Negative(-) |
| Shell Material |
Aluminiumalloy |
| Cooling Mode |
Natural air cooling |
| Insulating Requirement |
DC500V insulation resistance > 20MΩ |
| Power | 3W |
| Life Span |
30,000 hour |
| Temperature | Temperature: 0 to 50ºC |
| Humidity | Humidity: 20 to 85%RH (Non-condensing) |

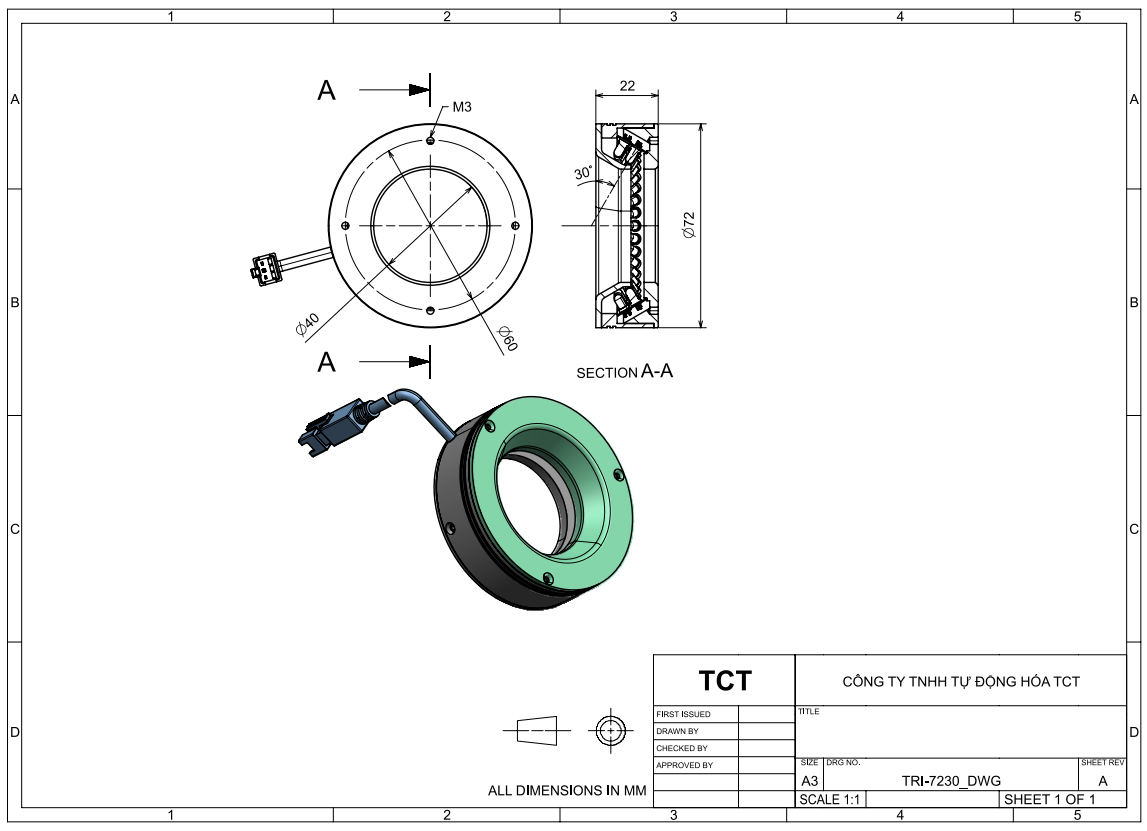

Kích thước
