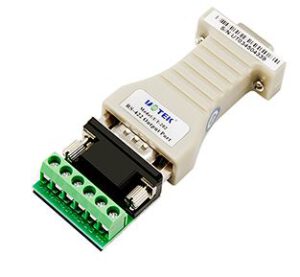

RS-232 to RS-422 Converter

Model： UT-202D

● Standards:RS-232C,RS-422 EIA/TIA
● Connector: RS-232 DB9 female, RS-422 DB9 male，with terminal block
● Operating mode: asynchronous half-duplex, differential transmission
● Transmission media: twisted-pair or shielded wire
● Baud rate: 300-115.2KBPS
● Dimension: 63mm×33mm×17mm
● Working temperature: -25℃ to 70℃
● Relative humidity: 5% to 95%
● Transmission distance: 1,200m(RS-422), 5m(RS-232)
